Description

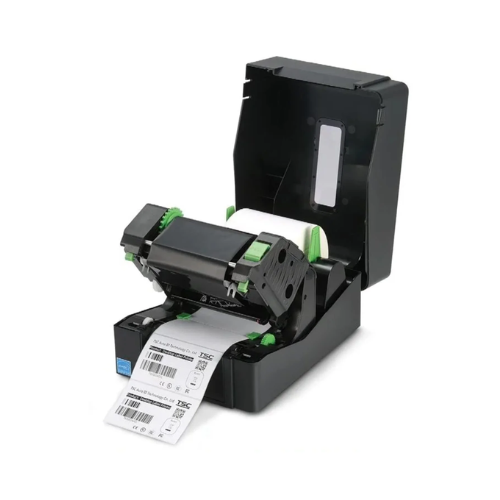

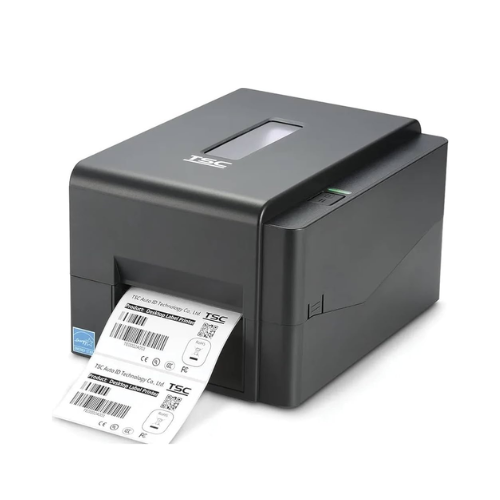

he TSC TE 244 Thermal Transfer Barcode Printer is a top-performing desktop-class barcode label printer designed for efficiency, durability, and versatility. This entry-level yet powerful printer boasts a fast printing speed of up to 6 inches per second, making it ideal for handling various labeling tasks with precision and ease. Featuring the largest memory capacity in its class and a robust dual-motor design, the TE244 ensures smooth operation for a wide range of applications.
With its compact footprint and user-friendly design, the TSC TE244 is perfect for businesses looking for high-quality barcode printing without the burden of high ownership costs. This printer supports both thermal transfer and direct thermal printing methods, delivering sharp and durable labels with 203 DPI resolution.
Features :
- Prints at 8 dots/mm (203 DPI) resolution, ensuring crisp and clear barcode labels.
- Supports thermal transfer and direct thermal printing methods.
- Accommodates ribbon widths ranging from 40 mm to 110 mm (1.6” to 4.3”).
- Equipped with 8 MB Flash memory and 16 MB SDRAM for seamless operation.
- Powered by a 32-bit RISC CPU for fast and efficient label processing.
- Supports label rolls with an outer diameter of up to 127 mm (5 inches).
- Compatible with 300 m ribbons, reducing the need for frequent replacements.
- Operates with an external universal switching power supply for reliable and efficient performance.
Advantages :
- Low maintenance and ownership costs make it an ideal choice for businesses on a budget.
- Dual printing methods and wide media compatibility cater to various labeling needs.
- Built with a rugged dual-motor design to withstand high-volume operations.
- Space-saving and lightweight, perfect for small to medium-sized workspaces.
- Simple setup and operation ensure minimal learning curve.
Applications :
-
- Print shipping labels, compliance tags, and inventory management labels.
- Ideal for price tags, promotional labels, and product barcodes.
- Create patient ID labels, prescription tags, and medical device labels.
- Use for product labeling, asset tracking, and work-in-process labels.
- Generate inventory labels and storage tracking tags for streamlined operations.
- Efficiently print address labels, return labels, and branded tags.
Sepicifications:
| Resolution | 8 dots/mm (203 DPI) |
| Printing method | Thermal Transfer & Direct Thermal |
| Max. print speed | 152.4 mm (6”)/second |
| Max. print width | 108 mm (4.25“) |
| Max. print length | 2,794 mm (110“) |
| Physical dimension | 204 mm (W) x 164 mm (H) x 280 mm (D)
8.03“ (W) x 6.46“ (H) x 11.02“ (D) |
| Weight | 2.4 kg (5.29 lbs) |
| Label roll capacity | 127 mm (5“) OD |
| Ribbon | 300 m long, max. OD 67 mm, 1” core (ink coated outside)
110 m long, max. OD 40 mm, 0.5” core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
| Processor | 32-bit RISC CPU |
| Memory | • 8 MB Flash memory
• 16 MB SDRAM |
| Interface | • USB 2.0
• Internal Bluetooth 4.0 (factory option) |
| Power | External universal switching power supply
Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 2.5A, 60W |
